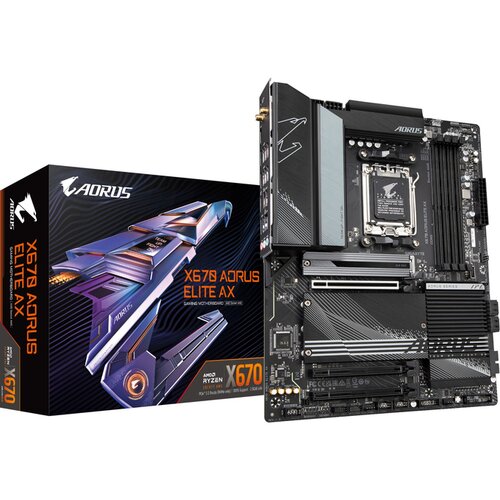

Gigabyte osnovna plošča X670 AORUS ELITE AX, DDR5, SATA3, USB3.2Gen2x2, DP, WiFi, AM5 ATX

PODNOŽJE: AMD AM5
ZA PROCESORJE: AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors
FORMAT: ATX format 30.5 cm x 24.4 cm
VEZNI ČIP: AMD X670
POMNILNIK:
4 x DIMM, Max. 128GB, DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400MHz nonECC Unbuffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Dual Channel Memory Architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
Extreme Memory Profile (XMP) memory modules
GRAFIKA: preko APU, če leta podpira
RAID: DA (0,1,10) support for SATA / NVMe SSD storage devices
RAZŠIRITVENE REŽE:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
MREŽNA KARTICA: Realtek 2.5GbE LAN chip + AMD WiFi 6E RZ616 (MT7922A22M) WIFI a, b, g, n, ac, ax + BLUETOOTH 5.2
ZVOČNA KARTICA: Realtek 7.1 Surround Sound High Definition Audio CODEC
NOTRANJI PRIKLJUČKI:
1 x 24pin ATX main power connector
2 x 8pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x CPU cooler LED strip/RGB LED strip header
2 x addressable LED strip headers
2 x RGB LED strip headers
4 x SATA 6Gb/s connectors
4 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB TypeC® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x THBU4 addin card connector
1 x Trusted Platform Module header (For the GCTPM2.0 SPI/GCTPM2.0 SPI 2.0 module only)
1 x power button
1 x reset button
1 x Clear CMOS button
1 x reset jumper
1 x Clear CMOS jumper
ZUNANJI PRIKLJUČKI:
1 x QFlash Plus button
2 x SMA antenna connectors (2T2R)
1 x HDMI port
6 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x USB 3.2 Gen 2 TypeA ports (red)
1 x USB TypeC® port, with USB 3.2 Gen 2x2 support
1 x RJ45 port
3 x audio jacks
DODATNO:

iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for QFlash
Support for QFlash Plus
Support for Smart Backup
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software

Spletna stran proizvajalca: https://www.gigabyte.com/Motherboard/X670AORUSELITEAXrev10#kf
