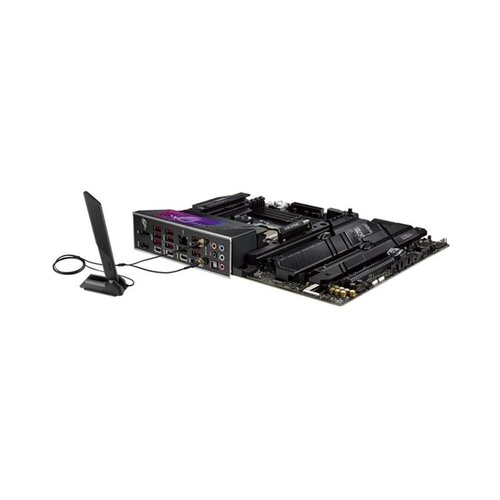

Asus osnovna plošča ROG STRIX X670E-E GAMING WIFI

PODNOŽJE: AMD AM5
ZA PROCESORJE: AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors
FORMAT: ATX format 30.5 cm x 24.4 cm
VEZNI ČIP: AMD X670
POMNILNIK:
4 x DIMM, Max. 128GB, DDR5 6400+(OC)/6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC andNonECC, Unbuffered Memory*
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO™)
OptiMem II
NonECC, Unbuffered DDR5 Memory supports
OnDie ECC function
GRAFIKA: preko APU, če leta podpira
RAID: DA (0,1,10)
RAZŠIRITVENE REŽE:
AMD Ryzen™ 7000 Series Desktop Processors
2 x PCIe 5.0 x16 slots (supports x16 or x8/x4 modes)
AMD X670 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
MREŽNA KARTICA: Intel 2.5Gb Ethernet ASUS LANGuard
ZVOČNA KARTICA: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
NOTRANJI PRIKLJUČKI:
Fan and Cooling related
1 x 4pin CPU Fan header
1 x 4pin CPU OPT Fan header
1 x 4pin AIO Pump header
5 x 4pin Chassis Fan header
Power related
1 x 24pin Main Power connector
2 x 8pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 connector (supports USB TypeC®)
1 x USB 3.2 Gen 1 header supports
additional 2 USB 3.2 Gen 1 ports
3 x USB 2.0 headers support additional 6 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Alteration Mode Switch
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x Start button
1 x 203 pin System Panel header with Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ header
ZUNANJI PRIKLJUČKI:
1 x USB 3.2 Gen 2x2 port (1 x TypeC®)
12 x USB 3.2 Gen 2 ports (10 x TypeA, 2 x USB
TypeC®)
1 x DisplayPort
1 x HDMI® port
1 x WiFi Module
1 x Intel® 2.5Gb Ethernet port
5 x Goldplated audio jacks*
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
DODATNO:

Extreme Engine Digi+
5K Black Metallic Capacitors
ASUS QDesign
M.2 QLatch
PCIe Slot QRelease
QCode
QDIMM
QLED (CPU red, DRAM yellow, VGA
white, Boot Device yellow green)
QSlot
ASUS Thermal Solution
M.2 heatsink backplate
M.2 heatsink
VRM heatsink design
Massive M.2 Heatsink
ASUS EZ DIY
BIOS FlashBack™ button
BIOS FlashBack™ LED
Clear CMOS button
ProCool II
Premounted I/O shield
SafeSlot
SafeDIMM
AURA Sync
AURA RGB header
Addressable Gen 2 headers
ROG Exclusive Software
GameFirst VI
ROG CPUZ
Sonic Studio III + Sonic Studio Virtual
Mixer + Sonic Suite Companion
Sonic Radar III
DTS® Sound Unbound
Antivirus software
ASUS Exclusive Software
Armoury Crate
AIDA64 Extreme (60 days free trial)
AURA Creator
AURA Sync
Fan Xpert 4 (with AI Cooling II)
Power Saving
TwoWay AI Noise Cancellation
AI Suite 3
TPU
DIGI+ VRM
Turbo app
PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
Dynamic OC Switcher
FlexKey

Spletna stran proizvajalca: https://rog.asus.com/motherboards/rogstrix/rogstrixx670eegamingwifimodel/
