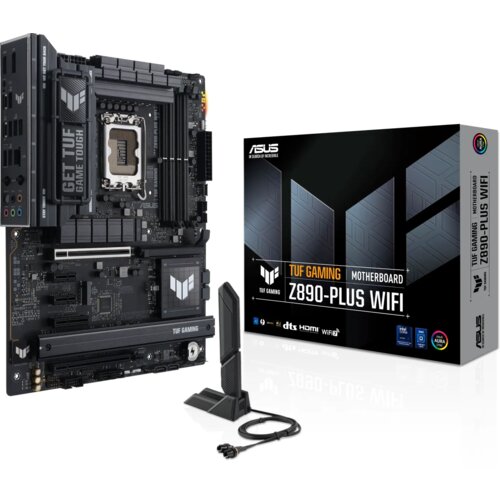

Asus TUF GAMING Z890-PLUS WIFI, DDR5, SATA3, USB4, DP, 2.5GbE, WIFI 7, LGA1851 ATX

PODNOŽJE: INTEL LGA1851
ZA PROCESORJE: Intel Core Ultra Processors
FORMAT: ATX Form Factor 30.5 x 24.4 cm
VEZNI ČIP: Intel Z890 Express
POMNILNIK:
4 x DDR5 (do 9066MHz) do skupno 256GB kapacitete, dual channel in Extreme Memory Profile (XMP) podpora, Support for nonECC / ECC Unbuffered DIMM (operate in nonECC mode), podpora za NonECC, Unbuffered ,Clocked Unbuffered DIMM (CUDIMM), ASUS Enhanced Memory Profile III(AEMPIII)
GRAFIKA: preko CPU
RAID: DA (0,1,5,10) NVMe SATA
RAZŠIRITVENE REŽE:
Intel® Core™ Ultra Processors(Series 2)
1 x PCIe 5.0 x16 slot
Intel® Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x4 slot
2 x PCIe 4.0 x1 slots
MREŽNA KARTICA: Intel® 2.5Gb Ethernet z TUF LANGuard + 2x2 WiFi 7 + BLUETOOTH 5.4
ZVOČNA KARTICA: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
NOTRANJI PRIKLJUČKI:
Fan and Cooling Related
1 x 4pin CPU Fan header
1 x 4pin CPU OPT Fan header
1 x 4pin AIO Pump header
4 x 4pin Chassis Fan headers
Power Related
1 x 24pin Main Power connector
2 x 8pin +12V CPU Power connector
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB TypeC® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 101 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header
Rear USB (Total 8 ports)
1 x Thunderbolt™ 4 port (1 x USB TypeC®)
1 x USB 20Gbps port (1 x USB TypeC®)
3 x USB 10Gbps ports (3 x TypeA)
3 x USB 5Gbps ports (3 x TypeA)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB TypeC®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB TypeC® power delivery output: max. 5V/3A
Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.
ZUNANJI PRIKLJUČKI:
1 x Thunderbolt™ 4 USB TypeC® port
1 x USB 20Gbps port (1 x USB TypeC® with DP Alt mode)
3 x USB 10Gbps ports (3 x TypeA)
3 x USB 5Gbps ports (3 x TypeA)
1 x DisplayPort
1 x HDMI™ port
1 x WiFi module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
DODATNO:

ASUS TUF PROTECTION
DIGI+ VRM ( Digital power design with DrMOS)
ESD Guards
TUF LANGuard
Overvoltage protection
SafeSlot
Stainlesssteel back I/O
ASUS QDesign
M.2 QLatch
M.2 QRelease
M.2 QSlide
PCIe Slot QRelease
QAntenna
QDashboard
QDIMM
QLED (CPU red, DRAM yellow, VGA white, Boot Device yellow green)
QSlot
ASUS Thermal Solution
M.2 heatsink backplate
M.2 heatsink
VRM heatsink design
ASUS EZ DIY
BIOS FlashBack™ button
BIOS FlashBack™ LED
CPU Socket lever protector
ProCool
Premounted I/O shield
SafeDIMM
Aura Sync
Addressable Gen 2 headers
ASUS Exclusive Software
Armoury Crate
Aura Creator
Aura Sync
Fan Xpert 4 (with AI Cooling II)
Power Saving
ASUS DriverHub
ASUS GlideX
TurboV Core
TUF GAMING CPUZ
DTS Audio Processing
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash
ASUS UEFI BIOS EZ Mode
ASUS MyHotkey
NPU Boost

Spletna stran proizvajalca: https://www.asus.com/motherboardscomponents/motherboards/tufgaming/tufgamingz890pluswifi/
