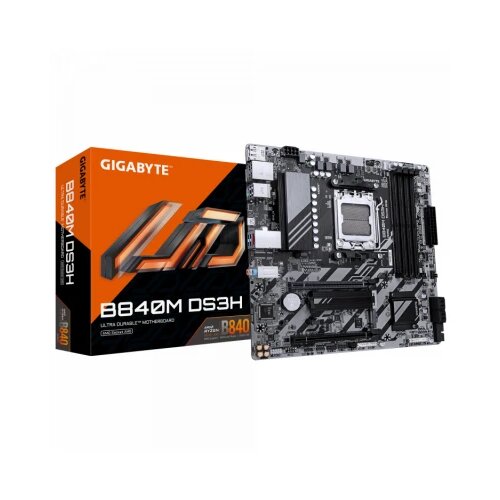

Gigabyte B840M DS3H, DDR5, SATA3, USB3.2Gen1, DP, 2.5GbE, AM5 mATX

PODNOŽJE: AMD AM5
ZA PROCESORJE: AMD RYZEN 7000/8000/9000 Series
FORMAT: micro ATX format 24.4 cm x 24.4 cm
VEZNI ČIP: AMD B840
POMNILNIK:
4 x DDR5 DIMM nonECC 8200/8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400MHz (odvisno od procesorja) do skupno 256GB kapacitete, dual channel in EXtended Profiles for Overclocking, Extreme Memory Profile (XMP) podpora
GRAFIKA: DA preko APU
RAID: DA (0,1,10) support for SATA/NVME storage devices, RAID 5 samo z AMD Ryzen 9000 serijo
RAZŠIRITVENE REŽE:
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 8000 SeriesPhoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 SeriesPhoenix 2 Processors support PCIe 4.0 x4 mode
Chipset:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
MREŽNA KARTICA: Realtek 2.5GbE LAN chip (10/100/1000Mbit/2.5Gbit)
ZVOČNA KARTICA: Realtek Audio codec High Definition Audio (2/4/5.1/7.1channel)
NOTRANJI PRIKLJUČKI:
1 x 24pin ATX main power connector
1 x 8pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
1 x system fan header
1 x system fan/water cooling pump header
2 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB TypeC® header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GCTPM2.0 SPI/GCTPM2.0 SPI 2.0/GCTPM2.0 SPI V2 module only)
1 x reset jumper
1 x Clear CMOS jumper
ZUNANJI PRIKLJUČKI:
1 x HDMI port (Note)
2 x DisplayPorts (Note)
1 x QFlash Plus button
1 x PS/2 keyboard/mouse port
1 x USB TypeC® port, with USB 3.2 Gen 1 support
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ45 port
3 x audio jacks
DODATNO:

iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for QFlash
Support for QFlash Plus
Support for Smart Backup
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64bit
Support for Windows 10 64bit

Spletna stran proizvajalca: https://www.gigabyte.com/Motherboard/B840MDS3H#kf
