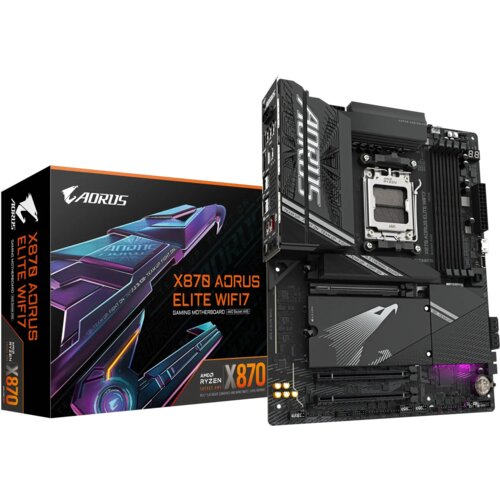

Gigabyte X870 AORUS ELITE WIFI7, DDR5, SATA3, USB4, DP, 2.5GbE, WiFi 7, AM5 ATX

PODNOŽJE: AMD AM5
ZA PROCESORJE: AMD Ryzen 7000/8000/9000 Series Desktop Processors
FORMAT: ATX format 30.5 cm x 24.4 cm
VEZNI ČIP: AMD X870
POMNILNIK:
4 x DIMM DDR5, Max. 256GB, DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400MHz
Dual Channel Memory Architecture
Support for nonECC Unbuffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
GRAFIKA: preko APU, če leta podpira
RAID: DA (0,1,10) support for SATA / NVMe SSD storage devices
RAZŠIRITVENE REŽE:
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.
When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
AMD Ryzen™ 8000 SeriesPhoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 SeriesPhoenix 2 Processors support PCIe 4.0 x4 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.)
Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
* The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
MREŽNA KARTICA: Realtek 2.5GbE LAN chip + WiFi 7 + BLUETOOTH 5.4
MediaTek WiFi 7 MT7925 (PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.4
Support for 11be 160MHz wireless standard
Realtek® WiFi 7 RTL8922AE (PCB rev. 1.1)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.4
Support for 11be 160MHz wireless standard
ZVOČNA KARTICA: Realtek ALC1220 Surround Sound High Definition Audio CODEC
NOTRANJI PRIKLJUČKI:
1 x 24pin ATX main power connector
2 x 8pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
4 x system fan headers
2 x system fan/water cooling pump headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB TypeC® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module header (For the GCTPM2.0 SPI/GCTPM2.0 SPI 2.0/GCTPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x power button
1 x reset button
2 x temperature sensor headers
1 x reset jumper
1 x Clear CMOS jumper
ZUNANJI PRIKLJUČKI:
1 x QFlash Plus button
1 x HDMI port (Note)
2 x antenna connectors (2T2R)
2 x USB4® USB TypeC® ports (DisplayPort (Note))
2 x USB 3.2 Gen 2 TypeA ports (red)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ45 port
1 x optical S/PDIF Out connector
2 x audio jacks
DODATNO:

iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Noise detection
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for QFlash
Support for QFlash Plus
Support Smart Backup
Bundled Software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating System
Support for Windows 11 64bit

Spletna stran proizvajalca: https://www.gigabyte.com/Motherboard/X870AORUSELITEWIFI7#kf
