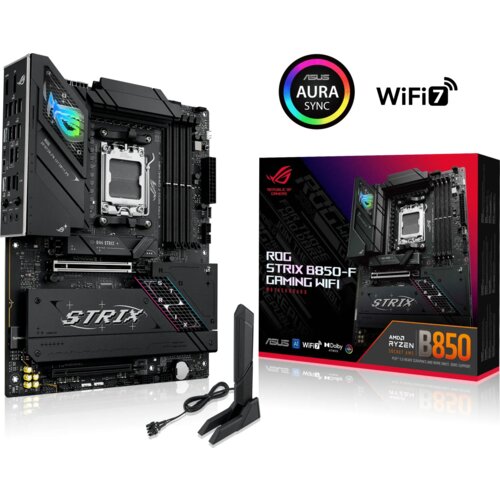

Asus ROG STRIX B850-F GAMING WIFI, DDR5, SATA3, USB3.2Gen2x2, DP, 2.5GbE, Wi-Fi 7, AM5 ATX

PODNOŽJE: AMD AM5
ZA PROCESORJE: AMD RYZEN 9000 & 8000 & 7000 Series Desktop Processors
FORMAT: ATX format 30.5 cm x 24.4 cm
VEZNI ČIP: AMD B850
POMNILNIK:
4 x DDR5 DIMM ECC and NonECC, Unbuffered Memory 8000+MHz (odvisno od procesorja) do skupno 256GB kapacitete, dual channel in EXtended Profiles for Overclocking, ASUS Enhanced Memory Profile (AEMP)
GRAFIKA: DA preko APU
RAID: DA
AMD RAIDXpert2 Technology
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10
RAZŠIRITVENE REŽE:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot with QRelease Slim
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 5.0 x16 slot with QRlease Slim (supports PCIe 4.0 x8 or x4 mode)
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
MREŽNA KARTICA: Intel 2.5GbE LAN chip (10/100/1000Mbit/2.5Gbit) LANGuard + 2x2 WiFi 7 (802.11be) + Bluetooth® v5.4
ZVOČNA KARTICA: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
NOTRANJI PRIKLJUČKI:
Fan and Cooling Related
1 x 4pin CPU Fan header
1 x 4pin CPU OPT Fan header
1 x 4pin AIO Pump header
4 x 4pin Chassis Fan headers
Power Related
1 x 24pin Main Power connector
2 x 8pin +12V CPU Power connector
Storage Related
4 x M.2 slots (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB TypeC®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Power button
1 x 101 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header
ZUNANJI PRIKLJUČKI:
1 x USB 20Gbps port (1 x USB TypeC®)
3 x USB 10Gbps ports (2 x TypeA + 1 x USB TypeC®)
4 x USB 5Gbps ports (4 x TypeA)
4 x USB 2.0 ports (4 x TypeA)
1 x DisplayPort
1 x HDMI™ port
1 x WiFi module
1 x Intel® 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
DODATNO:

Extreme Engine Digi+
5K Black metallic capacitors
ASUS QDesign
M.2 QLatch
M.2 QRelease
M.2 QSlide
PCIe Slot QRelease Slim (with PCIe SafeSlot)
QAntenna
QDashboard
QDIMM
QLED (CPU red, DRAM yellow, VGA white, Boot Device yellow green)
QSlot
ASUS Thermal Solution
M.2 heatsink backplate
M.2 heatsink
ASUS EZ DIY
BIOS FlashBack™ button
BIOS FlashBack™ LED
Clear CMOS button
ProCool
Premounted I/O shield
SafeSlot
SafeDIMM
Aura Sync
Addressable Gen 2 headers
ROG Exclusive Software
ROG CPUZ
Dolby Atmos
ASUS Exclusive Software
Armoury Crate
AIDA64 Extreme (60 days free trial)
Aura Creator
Aura Sync
Fan Xpert 4
GameFirst
HWiNFO
Power Saving
ASUS DriverHub
ASUS GlideX
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
ASUS MyHotkey

Spletna stran proizvajalca: https://rog.asus.com/motherboards/rogstrix/rogstrixb850fgamingwifi/
