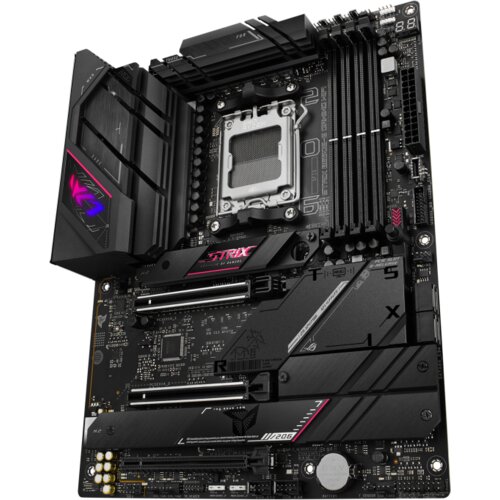

Asus ROG STRIX B650E-E GAMING WIFI, DDR5, SATA3, USB3.2Gen2x2, DP, 2.5GbE, Wi-Fi 6E, AM5 ATX

PODNOŽJE: AMD AM5
ZA PROCESORJE: AMD RYZEN 7000 Series
FORMAT: ATX format 30.5 cm x 24.4 cm
VEZNI ČIP: AMD B650
POMNILNIK:
4 x DDR5 DIMM ECC and NonECC, Unbuffered Memory 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/
6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz (odvisno od procesorja) do skupno 192GB kapacitete, dual channel in EXtended Profiles for Overclocking, OptiMem II podpora
GRAFIKA: DA preko APU
RAID: DA (0,1,10)
RAZŠIRITVENE REŽE:
2 x PCI Express 5.0 x16
1 x PCI Express 3.0/4.0 x4
MREŽNA KARTICA: Intel 2.5GbE LAN chip (10/100/1000Mbit/2.5Gbit) LANGuard + WiFi 6E 2.4/5GHz 2x2 WiFi 6E (802.11 a/b/g/n/ac/ax) + Bluetooth v5.2
ZVOČNA KARTICA: ROG SupremeFX 7.1 Audio codec ALC4080 High Definition Audio (2/4/5.1/7.1channel)
NOTRANJI PRIKLJUČKI:
Fan and Cooling related
1 x 4pin CPU Fan header
1 x 4pin CPU OPT Fan header
1 x 4pin AIO Pump header
5 x 4pin Chassis Fan headers
Power related
1 x 24pin Main Power connector
2 x 8pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports USB
1 x USB 3.2 Gen 2 connector (supports USB TypeC®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 203 pin System Panel header with
Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header
ZUNANJI PRIKLJUČKI:
1 x USB 3.2 Gen 2x2 port (1 x TypeC)
7 x USB 3.2 Gen 2 ports (6 x TypeA, 1 xUSB TypeC)
4 x USB 2.0 ports
1 x DisplayPort
1 x HDMI® port
1 x WiFi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
DODATNO:

Extreme Engine Digi+
5K Black Metallic Capacitors
ASUS QDesign
M.2 QLatch
PCIe Slot QRelease
QDIMM
QLED (CPU red, DRAM yellow, VGA
white, Boot Device yellow green)
QSlot
ASUS Thermal Solution
M.2 heatsinks
M.2 heatsink backplate
VRM heatsink design
ASUS EZ DIY
BIOS FlashBack™ button
BIOS FlashBack™ LED
Clear CMOS button
ProCool
Premounted I/O shield
SafeSlot
SafeDIMM
Aura Sync
Aura RGB header
Addressable Gen 2 headers
Software Features
ROG Exclusive Software
GameFirst VI
ROG CPUZ
Sonic Studio III + Sonic Studio Virtual
Mixer + Sonic Suite Companion
Sonic Radar III
DTS® Sound Unbound
Antivirus software
ASUS Exclusive Software
Armoury Crate
AIDA64 Extreme (60 days free trial)
Aura Creator
Aura Sync
Fan Xpert 4
Power Saving
TwoWay AI Noise Cancellation
AI Suite 3
TPU
DIGI+ VRM
Turbo app
PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
Dynamic OC Switcher
FlexKey

Spletna stran proizvajalca: https://rog.asus.com/motherboards/rogstrix/rogstrixb650eegamingwifimodel/
