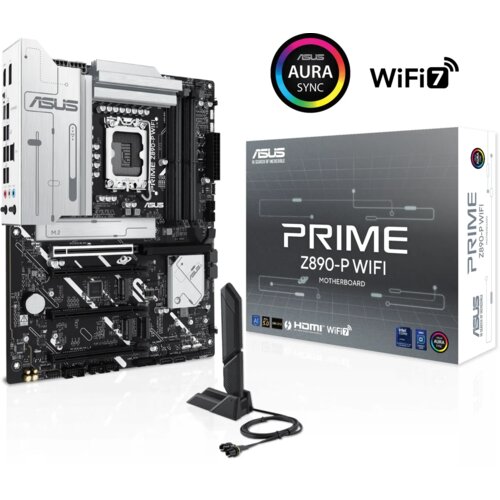

Asus PRIME Z890-P WIFI, DDR5, SATA3, USB4, DP, 2.5GbE, Wi-Fi 7, LGA1851 ATX

PODNOŽJE: INTEL LGA1851
ZA PROCESORJE: Intel Core Ultra Processors
FORMAT: ATX Form Factor 30.5 x 24.4 cm
VEZNI ČIP: Intel Z890 Express
POMNILNIK:
4 x DDR5 (do 8666MHz) do skupno 256GB kapacitete, dual channel in Extreme Memory Profile (XMP) podpora, Support for nonECC / ECC Unbuffered DIMM (operate in nonECC mode), podpora za NonECC, Unbuffered ,Clocked Unbuffered DIMM (CUDIMM), ASUS Enhanced Memory Profile III(AEMPIII)
GRAFIKA: preko CPU
RAID: DA (0,1,5,10) NVMe SATA Intel Rapid Storage Technology
RAZŠIRITVENE REŽE:
Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 5.0 x16 slot
Intel® Z890 Chipset
2 x PCIe 4.0 x16 slots (support x4 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)
MREŽNA KARTICA: Realtek 2.5Gb Ethernet z TUF LANGuard + 2x2 WiFi 7 + BLUETOOTH 5.4
ZVOČNA KARTICA: Realtek 7.1 Surround Sound High Definition Audio CODEC
NOTRANJI PRIKLJUČKI:
Fan and Cooling related
1 x 4pin CPU Fan header
1 x 4pin CPU OPT Fan header
1 x 4pin AIO Pump header
4 x 4pin Chassis Fan headers
Power related
1 x 24pin Main Power connector
2 x 8pin +12V CPU Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB TypeC®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (141pin)
1 x 101 pin Front Panel System header
1 x Thunderbolt™ (USB4®) header
ZUNANJI PRIKLJUČKI:
1 x Thunderbolt 4 USB TypeC port
1 x USB 10Gbps port (1 x TypeA)
2 x USB 5Gbps ports (2 x TypeA)
4 x USB 2.0 ports (4 x TypeA)
1 x DisplayPort
1 x HDMITM port
1 x WiFi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
DODATNO:

ASUS 5X PROTECTION III
DIGI+ VRM ( Digital power design with DrMOS)
LANGuard
Overvoltage Protection
SafeSlot
StainlessSteel Back I/O
ASUS QDesign
M.2 QLatch
PCIe Slot QRelease
QAntenna
QDashboard
QDIMM
QLED Core
QSlot
ASUS Thermal Solution
M.2 heatsink
VRM heatsink design
ASUS EZ DIY
BIOS FlashBack™ button
BIOS FlashBack™ LED
ProCool
Premounted I/O shield
Aura Sync
Aura RGB header
Addressable Gen2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
Aura Creator
Aura Sync
Fan Xpert 4 (with AI Cooling II)
Power Saving
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
ASUS CPUZ
TurboV Core
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash
ASUS UEFI BIOS EZ Mode
ASUS MyHotkey
NPU Boost (Intel Kseries Processors only)

Spletna stran proizvajalca: https://www.asus.com/motherboardscomponents/motherboards/prime/primez890pwifi/
