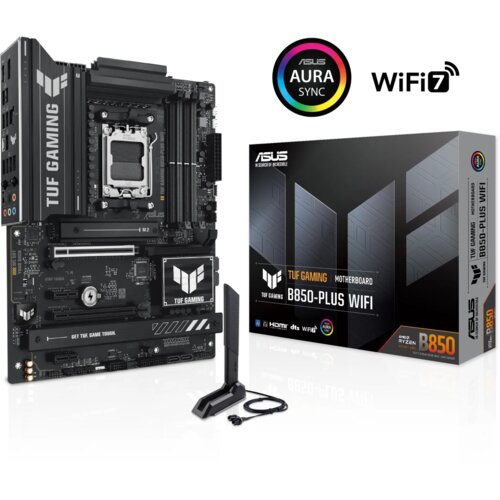

Asus TUF GAMING B850-PLUS WIFI, DDR5, SATA3, USB3.2Gen2x2, DP, 2.5GbE, WiFi 7, AM5 ATX

PODNOŽJE: AMD AM5
ZA PROCESORJE: AMD RYZEN 9000 & 8000 & 7000 Series Desktop Processors
FORMAT: ATX format 30.5 cm x 24.4 cm
VEZNI ČIP: AMD B850
POMNILNIK:
4 x DDR5 DIMM ECC and NonECC, Unbuffered Memory 8000+/7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz (odvisno od procesorja) do skupno 256GB kapacitete, dual channel in EXtended Profiles for Overclocking, ASUS Enhanced Memory Profile (AEMP) podpora
GRAFIKA: DA preko APU
RAID: DA
AMD RAIDXpert2 Technology
Ryzen™ 9000 Series Processors: RAID 0/1/5/10
Ryzen™ 8000 Series Processors: RAID 0/1
Ryzen™ 7000 Series Processors: RAID 0/1/10
RAZŠIRITVENE REŽE:
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x1 slots
MREŽNA KARTICA: Realtek 2.5GbE LAN chip (10/100/1000Mbit/2.5Gbit) TUF LANGuard + 2x2 WiFi 7 + Bluetooth® v5.4
ZVOČNA KARTICA: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
NOTRANJI PRIKLJUČKI:
Fan and Cooling Related
1 x 4pin CPU Fan header
1 x 4pin CPU OPT Fan header
1 x 4pin AIO Pump header
4 x 4pin Chassis Fan headers
Power Related
1 x 24pin Main Power connector
2 x 8pin +12V CPU Power connectors
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB TypeC® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 101 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header
ZUNANJI PRIKLJUČKI:
1 x USB 20Gbps port (1 x USB TypeC®)
3 x USB 10Gbps ports (3 x TypeA)
4 x USB 5Gbps ports (4 x TypeA)
2 x USB 2.0 ports (2 x TypeA)
1 x DisplayPort
1 x HDMI™ port
1 x WiFi module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button
DODATNO:

ASUS TUF PROTECTION
DIGI+ VRM ( Digital power design with DrMOS)
ESD Guards
TUF LANGuard
Overvoltage protection
SafeSlot
Stainlesssteel back I/O
ASUS QDesign
M.2 QLatch
PCIe Slot QRelease
QAntenna
QDashboard
QDIMM
QLED (CPU red, DRAM yellow, VGA white, Boot Device yellow green)
QSlot
ASUS Thermal Solution
M.2 heatsink
VRM heatsink design
ASUS EZ DIY
BIOS FlashBack™ button
BIOS FlashBack™ LED
ProCool
Premounted I/O shield
SafeDIMM
Aura Sync
Addressable Gen 2 headers
ASUS Exclusive Software
Armoury Crate
Aura Creator
Aura Sync
Fan Xpert 4
Power Saving
ASUS DriverHub
ASUS GlideX
TurboV Core
TUF GAMING CPUZ
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
ASUS MyHotkey

Spletna stran proizvajalca: https://www.asus.com/motherboardscomponents/motherboards/tufgaming/tufgamingb850pluswifi/
