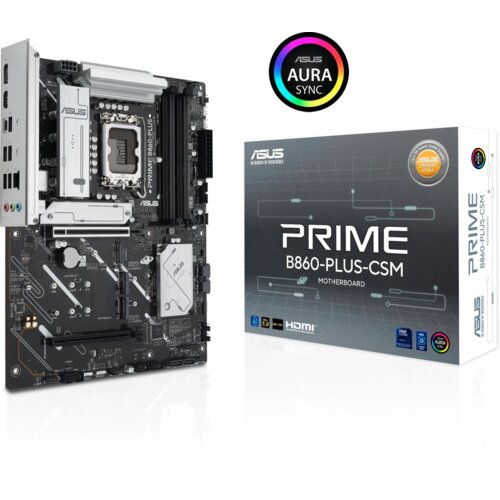

Asus PRIME B860-PLUS-CSM, DDR5, SATA3, USB3.2Gen2, DP, 2.5GbE, LGA1851 ATX

PODNOŽJE: INTEL LGA 1851
ZA PROCESORJE: Intel® Core™ Ultra Processors (Series 2)
FORMAT: ATX format 30.5 cm x 24.4 cm
VEZNI ČIP: INTEL B860
POMNILNIK:
4 x DDR5 DIMM ECC/nonECC do 8666+ MHz) do skupno 256GB kapacitete, dual channel in XMP podpora, ASUS Enhanced Memory Profile III(AEMPIII)
GRAFIKA: DA preko CPU
RAID: DA Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10
RAZŠIRITVENE REŽE:
Intel® Core™ Ultra Processors(series 2)
1 x PCIe 5.0 x16 slot
Intel® B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
MREŽNA KARTICA: Realtek 2.5GbE LAN chip z ASUS LANGuard
ZVOČNA KARTICA: Realtek 7.1 Surround Sound High Definition Audio CODEC
NOTRANJI PRIKLJUČKI:
Fan and Cooling related
1 x 4pin CPU Fan header
1 x 4pin CPU OPT Fan header
1 x 4pin AIO Pump header
4 x 4pin Chassis Fan headers
Power related
1 x 24pin Main Power connector
1 x 8pin +12V CPU Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB TypeC®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 header support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (141pin)
1 x 101 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header
ZUNANJI PRIKLJUČKI:
1 x USB 20Gbps port (1 x USB TypeC®)
2 x USB 10Gbps ports (2 x TypeA)
1 x USB 5Gbps port (1 x TypeA)
2 x USB 2.0 ports (2 x TypeA)
1 x DisplayPort
1 x HDMI™ port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
DODATNO:

ASUS 5X PROTECTION III
DIGI+ VRM ( Digital power design with DrMOS)
LANGuard
Overvoltage Protection
SafeSlot
Stainlesssteel back I/O
ASUS QDesign
QDashboard
QDIMM
QLED (CPU red, DRAM yellow, VGA white, Boot Device yellow green)
QSlot
ASUS Thermal Solution
Flexible M.2 heatsink
VRM heatsink design
ASUS EZ DIY
ProCool
Premounted I/O shield
Aura Sync
Aura RGB header
Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
Aura Creator
Aura Sync
Fan Xpert 2+
Power Saving
ASUS AI Advisor
ASUS DriverHub
ASUS CPUZ
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash
ASUS UEFI BIOS EZ Mode
ASUS MyHotkey

Spletna stran proizvajalca: https://www.asus.com/motherboardscomponents/motherboards/csm/primeb860pluscsm/
