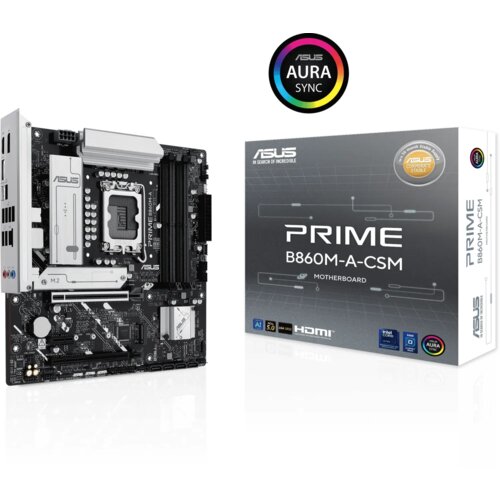

Asus PRIME B860M-A-CSM, DDR5, SATA3, USB4, DP, 2.5GbE, LGA1851 mATX
- Na zalogi
Asus PRIME B860M-A-CSM, DDR5, SATA3, USB4, DP, 2.5GbE, LGA1851 mATX
Trenutno najboljša ponudba:
213,90 €v Tiniam
Podobni izdelki iz Nerazvrščeno
Opis in lastnosti
PODNOŽJE: INTEL LGA 1851
ZA PROCESORJE: Intel® Core™ Ultra Processors (Series 2)
FORMAT: mATX format 24.4 cm x 24.4 cm
VEZNI ČIP: INTEL B860
POMNILNIK:
4 x DDR5 DIMM ECC/nonECC do 8666+ MHz) do skupno 256GB kapacitete, dual channel in XMP podpora, ASUS Enhanced Memory
Profile III(AEMPIII)
GRAFIKA: DA preko CPU
RAID: DA Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10
RAZŠIRITVENE REŽE:
Intel® Core™ Ultra Processors(series 2)
1 x PCIe 5.0 x16 slot
Intel® B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
MREŽNA KARTICA: Realtek 2.5GbE LAN chip z ASUS LANGuard
ZVOČNA KARTICA: Realtek 7.1 Surround Sound High Definition Audio CODEC
NOTRANJI PRIKLJUČKI:
Fan and Cooling Related
1 x 4pin CPU Fan header
1 x 4pin CPU OPT Fan header
1 x 4pin AIO Pump header
3 x 4pin Chassis Fan headers
Power Related
1 x 24pin Main Power connector
1 x 8pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB TypeC® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additionalUSB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (141 pin)
1 x 101 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header
ZUNANJI PRIKLJUČKI:
1 x USB 20Gbps port (1 x USB TypeC®)
1 x USB 10Gbps port (1 x TypeA)
2 x USB 5Gbps ports (2 x TypeA)
4 x USB 2.0 ports (4 x TypeA )
2 x DisplayPort
1 x HDMI™ port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
DODATNO:
ASUS 5X PROTECTION III
DIGI+ VRM ( Digital power design with DrMOS)
ESD Guards
LANGuard
Overvoltage protection
SafeSlot
Stainlesssteel back I/O
ASUS QDesign
QDashboard
QDIMM
QLED Core
QSlot
ASUS Thermal Solution
M.2 heatsink
VRM heatsink design
ASUS EZ DIY
ProCool
Premounted I/O shield
Aura Sync
Aura RGB header
Addressable Gen2 headers
ASUS Exclusive Software
Armoury Crate
Aura Creator
Aura Sync
Fan Xpert 2+
Power Saving
ASUS DriverHub
ASUS CPUZ
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash
ASUS UEFI BIOS EZ Mode
ASUS MyHotkey
Spletna stran proizvajalca: https://www.asus.com/motherboardscomponents/motherboards/csm/primeb860macsm/
