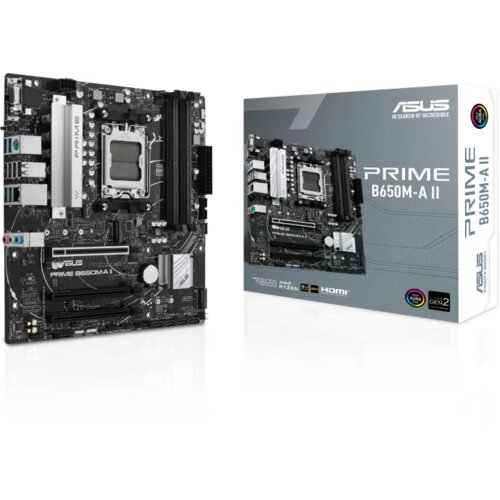

Asus PRIME B650M-A II-CSM, DDR5, SATA3, USB3.2Gen2, DP, 2.5GbE, AM5 mATX

PODNOŽJE: AMD AM5
ZA PROCESORJE: AMD RYZEN 7000 Series
FORMAT: ATX format 24.4 cm x 24.4 cm
VEZNI ČIP: AMD B650
POMNILNIK:
4 x DDR5 DIMM ECC and NonECC, Unbuffered Memory 7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800MHz (odvisno od procesorja) do skupno 192GB kapacitete, dual channel in EXtended Profiles for Overclocking, OptiMem II podpora
GRAFIKA: DA preko APU
RAID: DA (0,1,10)
RAZŠIRITVENE REŽE:
1 x PCI Express 3.0/4.0 x16
1 x PCI Express 3.0/4.0 x8/x4
2 x PCI Express 3.0/4.0 x1
MREŽNA KARTICA: Realtek 2.5GbE LAN chip (10/100/1000Mbit/2.5Gbit)
ZVOČNA KARTICA: Realtek Audio codec High Definition Audio (2/4/5.1/7.1channel)
NOTRANJI PRIKLJUČKI:
Fan and Cooling related
1 x 4pin CPU Fan header
1 x 4pin CPU OPT Fan header
3 x 4pin Chassis Fan headers
Power related
1 x 24pin Main Power connector
1 x 8pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB TypeC® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (141pin)
1 x 101 pin System Panel header
ZUNANJI PRIKLJUČKI:
2 x USB 3.2 Gen 2 ports (2 x TypeA)
2 x USB 3.2 Gen 1 ports (2 x TypeA)
4 x USB 2.0 ports (4 x TypeA)
1 x DisplayPort
1 x VGA port
1 x HDMI® port
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
1 x PS/2 Keyboard/Mouse combo port
DODATNO:

Fan and Cooling related
1 x 4pin CPU Fan header
1 x 4pin CPU OPT Fan header
3 x 4pin Chassis Fan headers
Power related
1 x 24pin Main Power connector
1 x 8pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB TypeC® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (141pin)
1 x 101 pin System Panel header
Special Features
ASUS 5X PROTECTION III
DIGI+ VRM
LANGuard
Overvoltage Protection
Safeslot Core+
StainlessSteel Back I/O
ASUS QDesign
QDIMM
QLED Core
QSlot
ASUS Thermal Solution
VRM heatsink design
ASUS EZ DIY
BIOS FlashBack™ button
BIOS FlashBack™ LED
Aura Sync
Aura RGB header
Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
Aura Creator
Aura Sync
Fan Xpert 2+
Power Saving
AI Suite 3
TurboV EVO
DIGI+ VRM
PC Cleaner
ASUS CPUZ
Norton Antivirus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode

Spletna stran proizvajalca: https://www.asus.com/motherboardscomponents/motherboards/csm/primeb650maiicsm/
