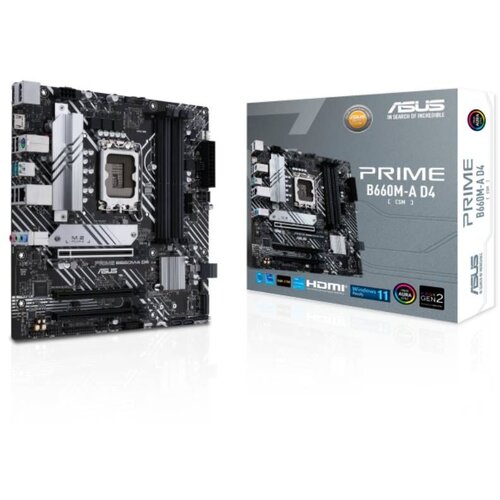

Asus PRIME B660M-A D4-CSM, DDR4, SATA3, USB3.2Gen1, DP, LGA1700 mATX

PODNOŽJE: INTEL LGA 1700ZA PROCESORJE: 12th Generation Core i7/i5/i3/Pentium/CeleronFORMAT: mATX Form Factor 24.4 x 24.4 cmVEZNI ČIP: Intel B660POMNILNIK:4 x DIMM DDR4 (do5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133MHz) do skupno 128GB kapacitete, dual channel podpora,Extreme Memory Profile XMP podporaGRAFIKA: DA preko CPURAID: DA (0,1,5,10)RAZŠIRITVENE REŽE:1x PCIe 4.0/3.0 x16 (Intel 12th Gen processors support PCIe 4.0)1 x PCIe3.0 x41 x PCIe3.0 x1MREŽNA KARTICA: Intel Gigabit LAN Controller(s) zASUS LANGuardZVOČNA KARTICA: 7.1Channel High Definition Audio CODECNOTRANJI PRIKLJUČKI:Fan and Cooling related1 x 4pin CPU Fan header1 x 4pin CPU OPT Fan header2 x 4pin Chassis Fan headersPower related1 x 24pin Main Power connector1 x 8pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports1 x USB 3.2 Gen 1 connector (supports USB TypeC)2 x USB 2.0 headers support additional 4 USB 2.0 ports1 x USB 2.0 header supports 1 USB 2.0 portMiscellaneous3 x AURA Addressable Gen 2 headers1 x AURA RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x LPT header1 x S/PDIF Out header1 x SPI TPM header (141pin)1 x 203 pin System Panel header with Chassis intrude functionZUNANJI PRIKLJUČKI:2 x USB 3.2 Gen 2 ports (2 x TypeA )4 x USB 2.0 ports (4 x TypeA)1 x DisplayPort2 x HDMI ports1 x Intel 1Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard/Mouse combo portDODATNO:ASUS 5X PROTECTION III DIGI+ VRM Enhanced DRAM Overcurrent Protection ESD Guards LANGuard Overvoltage Protection SafeSlot Core+ StainlessSteel Back I/OASUS QDesign QDIMM QSlotASUS Thermal Solution M.2 heatsink VRM heatsink designASUS EZ DIY ProCoolAURA Sync AURA RGB header Addressable Gen 2 RGB headersSoftware FeaturesASUS Exclusive SoftwareArmoury Crate AURA Creator AURA Sync Fan Xpert 2+AI Suite 3 Performance And Power Saving UtilityTurboV EVOEPUDigi+ VRMASUS CPUZNorton Antivirus software (Free Trial version)WinRARUEFI BIOSASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ ModeSpletna stran proizvajalca:https://www.asus.com/motherboardscomponents/motherboards/prime/primeb660mad4csm/
