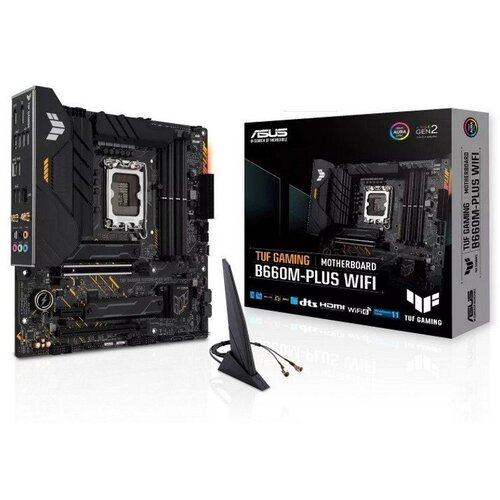

Asus TUF GAMING B660M-PLUS WIFI, DDR5, SATA3, USB3.2Gen2x2, DP, WiFi, LGA1700 mATX

PODNOŽJE: INTEL LGA 1700ZA PROCESORJE: 12th Generation Core i7/i5/i3/Pentium/CeleronFORMAT: ATX Form Factor 24.4 x 24.4 cmVEZNI ČIP: Intel B660POMNILNIK:4 x DIMM DDR5 (do6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800MHz) do skupno 128GB kapacitete, dual channel podpora,Extreme Memory Profile XMP podporaGRAFIKA: DA preko CPURAID: DA (0,1,5,10)RAZŠIRITVENE REŽE:1x PCIe5.0/4.0/3.0 x161 x PCIe3.0 x41 x PCIe 4.0 x1MREŽNA KARTICA:Realtek 2.5Gb EthernetzTUF LANGuardZVOČNA KARTICA:Realtek 7.1 Surround Sound High Definition Audio CODECNOTRANJI PRIKLJUČKI:Fan and Cooling related1 x 4pin CPU Fan header1 x 4pin CPU OPT Fan header1 x 4pin AIO Pump header3 x 4pin Chassis Fan headersPower related1 x 24pin Main Power connector1 x 8pin +12V Power connector1 x 4pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 connector (supports USB TypeC)1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x AURA RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x 203 pin System Panel header with Chassis intrude function1 x Thunderbolt headerZUNANJI PRIKLJUČKI:1 x USB 3.2 Gen 2x2 port (1 x USB TypeC)4 x USB 3.2 Gen 2 ports (4 x TypeA)1 x USB 3.2 Gen 1 port (1 x TypeA)2 x USB 2.0 ports (2 x TypeA)1 x DisplayPort1 x HDMI port1 x WiFi Module1 x Realtek 2.5Gb Ethernet port5 x Audio jacks1 x Optical S/PDIF out portDODATNO:ASUS TUF PROTECTION DIGI+ VRM ( Digital power design with DrMOS) Enhanced DRAM Overcurrent Protection ESD Guards TUF LANGuard Overvoltage Protection SafeSlot StainlessSteel Back I/OASUS QDesign M.2 QLatch QDIMM QLED (CPU red, DRAM yellow, VGA white, Boot Device yellow green) QSlotASUS Thermal Solution VRM heatsink design M.2 heatsinks ASUS EZ DIY CPU Socket lever protector ProCool Premounted I/O shield SafeDIMMAURA Sync AURA RGB header Addressable Gen 2 headersASUS Exclusive SoftwareArmoury Crate AURA Creator AURA Sync Fan Xpert 2+ TwoWay AI Noise CancelationAI Suite 3 Performance And Power Saving UtilityTurboV EVOEPUDIGI+ VRMTUF GAMING CPUZDTS Audio ProcessingMyASUSNorton Antivirus software (Free Trial version)WinRARUEFI BIOSASUS EZ DIY ASUS CrashFree BIOS 3 ASUS EZ Flash 3 ASUS UEFI BIOS EZ ModeSpletna stran proizvajalca:https://www.asus.com/MotherboardsComponents/Motherboards/TUFGaming/TUFGAMINGB660MPLUSWIFI/
