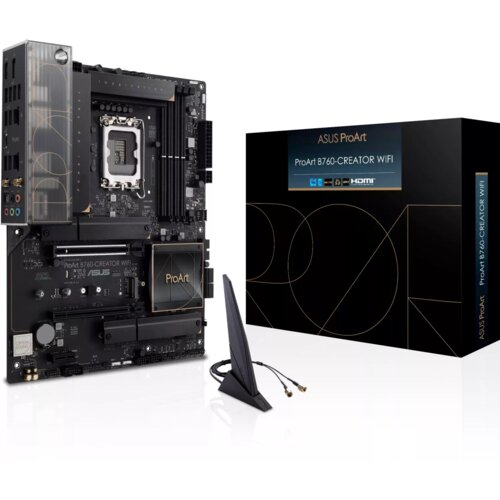

Asus ProArt B760-CREATOR WIFI, DDR5, 2.5Gb LAN, SATA3, USB3.2Gen2x2, DP, Wi-Fi 6, LGA1700 ATX

PODNOŽJE: INTEL LGA 1700
ZA PROCESORJE: 14th/13th/12th Generation Core i7/i5/i3/Pentium/Celeron
FORMAT: ATX format 30.5 cm x 24.4 cm
VEZNI ČIP: INTEL B760
POMNILNIK:
4 x DDR5 DIMM ECC/nonECC do skupno 192GB kapacitete, dual channel in XMP OptiMem II podpora
GRAFIKA: DA preko CPU
RAID: RAID 0, RAID 1, RAID 5, and RAID 10
RAZŠIRITVENE REŽE:
1 x PCIe 5.0 x16 slot
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 3.0 x1 slots
MREŽNA KARTICA: Realtek 2.5GbE LAN chip + 1 x Intel 1Gb Ethernet z TUF LANGuard + 2x2 WiFi 6 (802.11 a/b/g/n/ac/ax) + Bluetooth v5.2
ZVOČNA KARTICA: Realtek codec High Definition Audio (2/4/5.1/7.1channel)
NOTRANJI PRIKLJUČKI:
Fan and Cooling related
1 x 4pin CPU Fan header
1 x 4pin CPU OPT Fan header
1 x 4pin AIO Pump header
4 x 4pin Chassis Fan headers
Power related
1 x 24pin Main Power connector
1 x 8pin +12V Power connector
1 x 4pin +12V Power connector
1 x 6pin PD_12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2x2 (20G) connector (supports USB TypeC® with 60W PD/QC4+)
1 x USB 3.2 Gen 1 (5G) header supports additional 2 x USB 3.2 Gen1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (141pin)
1 x 205 pin System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ header
ZUNANJI PRIKLJUČKI:
1 x USB 3.2 Gen 2 port (1 x USB TypeC®)
4 x USB 3.2 Gen 1 ports (4 x TypeA)
4 x USB 2.0 ports (4 x TypeA)
1 x DisplayPort
1 x HDMITM port
1 x WiFi Module
1 x Realtek 2.5Gb Ethernet port
1 x Intel® 1Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
DODATNO:

ASUS 5X PROTECTION III
DIGI+ VRM ( Digital power design with DrMOS)
Enhanced DRAM Overcurrent Protection
ESD Guards
LANGuard
Overvoltage Protection
SafeSlot
StainlessSteel Back I/O
ASUS QDesign
M.2 QLatch
QConnector
QDIMM
QLED (CPU red, DRAM yellow, VGA white, Boot Device yellow green)
QSlot
ASUS Thermal Solution
Flexible M.2 heatsink
VRM heatsink design
ASUS EZ DIY
ProCool
Premounted I/O shield
AURA Sync
AURA RGB header
Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
AURA Creator
AURA Sync
Fan Xpert 4
Power Saving
TwoWay AI Noise Cancelation
AI Suite 3
Performance And Power Saving Utility
DIGI+ VRM
Turbo app
ASUS CPUZ
IT Management software supported
ASUS Control Center Express(ACCE)
ProArt Creator Hub
CreationFirst
MyASUS
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode

Spletna stran proizvajalca: https://www.asus.com/motherboardscomponents/motherboards/proart/proartb760creatorwifi/
