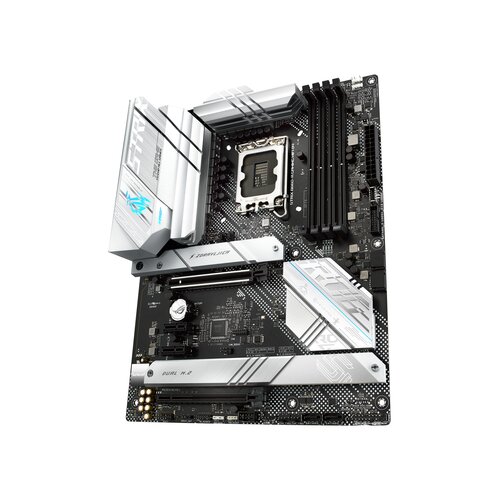

Asus Osnovna plošča Rog Strix B660-A, gaming, Wi-Fi, D4, LGA1700, DDR4, ATX

PODNOŽJE: INTEL LGA 1700
ZA PROCESORJE: 12th Generation Core i7/i5/i3/Pentium/Celeron
FORMAT: ATX Form Factor 30.5 x 24.4 cm
VEZNI ČIP: Intel B660
POMNILNIK:
4 x DIMM DDR4 (do 5333(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133MHz) do skupno 128GB kapacitete, dual channel podpora, OptiMem II podpora
GRAFIKA: DA preko CPU
RAID: DA (0,1,5,10)
RAZŠIRITVENE REŽE:
1 x PCIe 5.0/4.0/3.0 x16
1 x PCIe 3.0 x4
2 x PCIe 3.0 x1
MREŽNA KARTICA: Intel 2.5Gb Ethernet z LANGuard + 2x2 WiFi 6 (802.11 a/b/g/n/ac/ax) + Bluetooth v5.2
ZVOČNA KARTICA: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
NOTRANJI PRIKLJUČKI:
Fan and Cooling related
1 x 4pin CPU Fan header(s)
1 x 4pin CPU OPT Fan header(s)
1 x 4pin AIO Pump header(s)
3 x 4pin Chassis Fan header(s)
Power related
1 x 24pin Main Power connector
1 x 8pin +12V Power connector
1 x 4pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (support USB TypeC®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 101pin header + 1 USB 2.0 4pin header support additional 3 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (141pin)
1 x 203 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ header
ZUNANJI PRIKLJUČKI:
1 x USB 3.2 Gen 2x2 port(s) (1 x USB TypeC®)
1 x USB 3.2 Gen 2 port(s) (1 x TypeA)
3 x USB 3.2 Gen 1 port(s) (2 x TypeA + 1 x USB TypeC®)
4 x USB 2.0 port(s) (4 x TypeA)
1 x DisplayPort
1 x HDMI® port
1 x WiFi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack™ button
DODATNO:

Extreme Engine Digi+
5K Black Metallic Capacitors
ASUS QDesign
M.2 QLatch
QDIMM
QLED (CPU red, DRAM yellow, VGA white, Boot Device yellow green)
QSlot
ASUS Thermal Solution
M.2 heatsink
VRM heatsink design
ASUS EZ DIY
BIOS FlashBack™ button
BIOS FlashBack™ LED
CPU Socket lever protector
Premounted I/O shield
SafeSlot
SafeDIMM
AURA Sync
AURA RGB header(s)
Addressable Gen 2 header(s)
ROG Exclusive Software
GameFirst VI
ROG CPUZ
Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
Sonic Radar III
DTS® Sound Unbound
Antivirus software
ASUS Exclusive Software
Armoury Crate
AIDA64 Extreme (60 days free trial)
AURA Creator
AURA Sync
Fan Xpert 4
TwoWay AI Noise Cancelation
AI Suite 3
Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Turbo app
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
