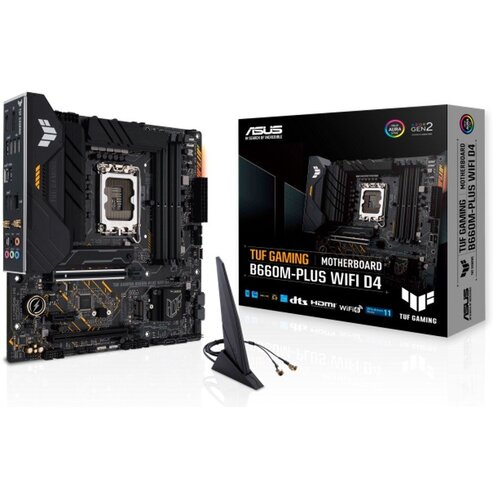

Asus Osnovna plošča TUF Gaming B660M-PLUS, Wi-Fi, D4, LGA1700, DDR4, mATX

PODNOŽJE: INTEL LGA 1700
ZA PROCESORJE: 12th Generation Core i7/i5/i3/Pentium/Celeron
FORMAT: ATX Form Factor 24.4 x 24.4 cm
VEZNI ČIP: Intel B660
POMNILNIK:
4 x DIMM DDR5 (do 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800MHz) do skupno 128GB kapacitete, dual channel podpora, Extreme Memory Profile XMP podpora
GRAFIKA: DA preko CPU
RAID: DA (0,1,5,10)
RAZŠIRITVENE REŽE:
1 x PCIe 5.0/4.0/3.0 x16
1 x PCIe 3.0 x4
1 x PCIe 4.0 x1
MREŽNA KARTICA: Realtek 2.5Gb Ethernet z TUF LANGuard
ZVOČNA KARTICA: Realtek 7.1 Surround Sound High Definition Audio CODEC
NOTRANJI PRIKLJUČKI:
Fan and Cooling related
1 x 4pin CPU Fan header
1 x 4pin CPU OPT Fan header
1 x 4pin AIO Pump header
3 x 4pin Chassis Fan headers
Power related
1 x 24pin Main Power connector
1 x 8pin +12V Power connector
1 x 4pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB TypeC®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 203 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ header
ZUNANJI PRIKLJUČKI:
1 x USB 3.2 Gen 2x2 port (1 x USB TypeC®)
4 x USB 3.2 Gen 2 ports (4 x TypeA)
1 x USB 3.2 Gen 1 port (1 x TypeA)
2 x USB 2.0 ports (2 x TypeA)
1 x DisplayPort
1 x HDMI® port
1 x WiFi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
DODATNO:

ASUS TUF PROTECTION
DIGI+ VRM ( Digital power design with DrMOS)
Enhanced DRAM Overcurrent Protection
ESD Guards
TUF LANGuard
Overvoltage Protection
SafeSlot
StainlessSteel Back I/O
ASUS QDesign
M.2 QLatch
QDIMM
QLED (CPU red, DRAM yellow, VGA white, Boot Device yellow green)
QSlot
ASUS Thermal Solution
VRM heatsink design
M.2 heatsinks
ASUS EZ DIY
CPU Socket lever protector
ProCool
Premounted I/O shield
SafeDIMM
AURA Sync
AURA RGB header
Addressable Gen 2 headers
ASUS Exclusive Software
Armoury Crate
AURA Creator
AURA Sync
Fan Xpert 2+
TwoWay AI Noise Cancelation
AI Suite 3
Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
TUF GAMING CPUZ
DTS Audio Processing
MyASUS
Norton Antivirus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
