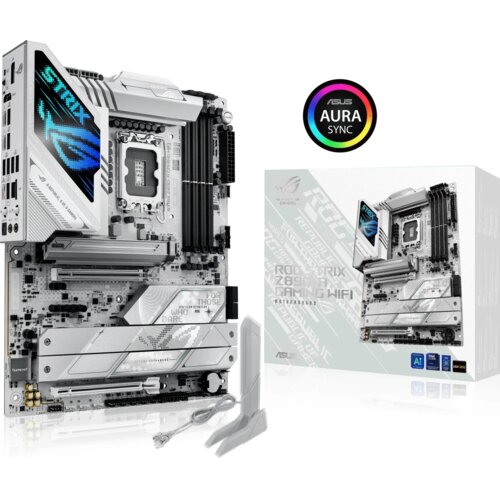

Asus ROG STRIX Z890-A GAMING WIFI, DDR5, SATA3, USB4, DP, 2.5GbE, WIFI 7, LGA1851 ATX

PODNOŽJE: INTEL LGA1851
ZA PROCESORJE: Intel Core Ultra Processors
FORMAT: ATX Form Factor 30.5 x 24.4 cm
VEZNI ČIP: Intel Z890 Express
POMNILNIK:
4 x DDR5 (do 9066MHz) do skupno 256GB kapacitete, dual channel in Extreme Memory Profile (XMP) podpora, Support for nonECC / ECC Unbuffered DIMM (operate in nonECC mode), podpora za NonECC, Unbuffered ,Clocked Unbuffered DIMM (CUDIMM), ASUS Enhanced Memory Profile III(AEMPIII), DIMM Flex, DIMM FIT
GRAFIKA: preko CPU
RAID: DA (0,1,5,10) NVMe SATA
RAZŠIRITVENE REŽE:
Intel® Core™ Ultra Processors(Series 2)
1 x PCIe 5.0 x16 slot
Intel® Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
MREŽNA KARTICA: Intel® 2.5Gb Ethernet z TUF LANGuard + 2x2 WiFi 7 + BLUETOOTH 5.4
ZVOČNA KARTICA: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
NOTRANJI PRIKLJUČKI:
Fan and Cooling Related
1 x 4pin CPU Fan header
1 x 4pin CPU OPT Fan header
1 x 4pin AIO Pump header
5 x 4pin Chassis Fan headers
Power Related
1 x 24pin Main Power connector
2 x 8pin +12V CPU Power connectors
Storage Related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB TypeC® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 101 pin Front System Panel header
1 x Thermal Sensor header
1 x Thunderbolt™ (USB4®) header
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel® Z890 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Rear USB (Total 10 ports)
2 x Thunderbolt™ 4 ports (2 x USB TypeC®)
6 x USB 10Gbps ports (5 x TypeA + 1 x USB TypeC®with up to 30W PD/PPS Fastcharge)
2 x USB 5Gbps ports (2 x TypeA)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB TypeC® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB TypeC® power delivery output: max. 5V/3A
USB TypeC® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
ZUNANJI PRIKLJUČKI:
2 x Thunderbolt™ 4 ports (2 x USB TypeC®)
6 x USB 10Gbps ports (5 x TypeA + 1 x USB TypeC®with up to 30W PD/PPD Fastcharge)
2 x USB 5Gbps ports (2 x TypeA)
1 x DisplayPort
1 x HDMI™ port
1 x WiFi module
1 x Intel® 2.5Gb Ethernet port
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
DODATNO:

Extreme Engine Digi+
5K Black metallic capacitors
ASUS QDesign
M.2 QLatch
M.2 QRelease
M.2 QSlide
PCIe Slot QRelease Slim (with PCIe SafeSlot)
QAntenna
QDashboard
QDIMM QLED (CPU red, DRAM yellow, VGA white, Boot Device yellow green)
QSlotASUS
Thermal Solution
M.2 heatsink backplate
M.2 heatsink
ASUS EZ DIY
BIOS FlashBack™ button
BIOS FlashBack™ LED
Clear CMOS button
CPU Socket lever protector
ProCool II
Premounted I/O shield
SafeSlot
SafeDIMM
Aura Sync
Addressable Gen 2 headers
ROG Exclusive Software
ROG CPUZ
Dolby Atmos
ASUS Exclusive Software
Armoury Crate
Aura Creator
Aura Sync
Fan Xpert 4 (with AI Cooling II)
GameFirst
Power Saving
AIDA64 Extreme (60 days free trial)
HWiNFO
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (30 Days Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
NPU Boost
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash
ASUS UEFI BIOS EZ Mode
ASUS MyHotkey
FlexKey

Spletna stran proizvajalca: https://rog.asus.com/motherboards/rogstrix/rogstrixz890agamingwifi/
